Light Steel Structure Modern Prefab K-Type House
Prefab House
Light Steel Structure Modern Prefab K-Type House
Light Steel Structure Modern Prefab K-Type House
Light Steel Structure Modern Prefab K-Type House
Light Steel Structure Modern Prefab K-Type House
Light Steel Structure Modern Prefab K-Type House

Light Steel Structure Modern Prefab K-Type House

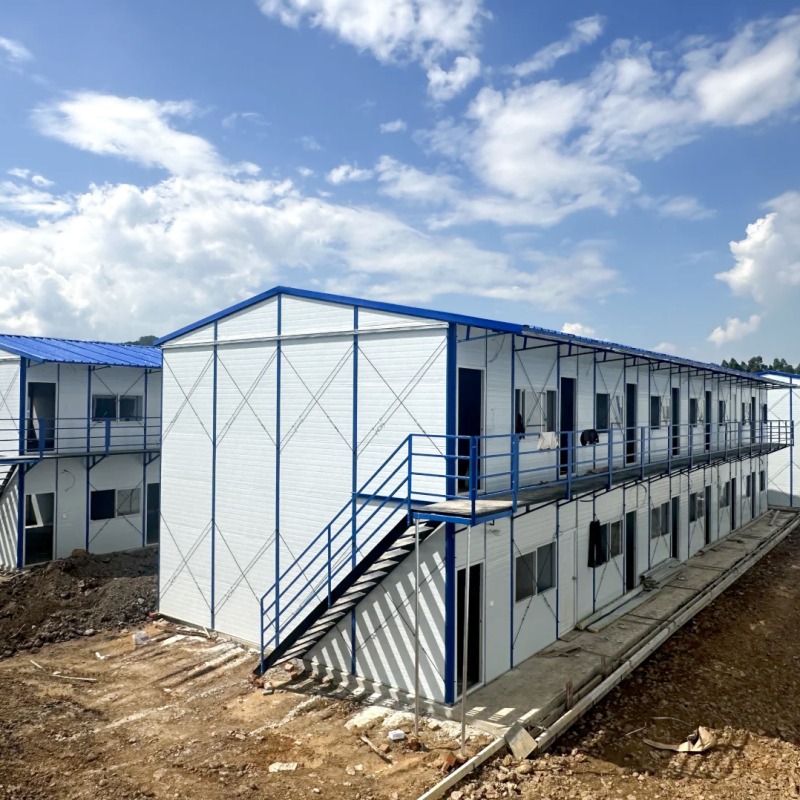

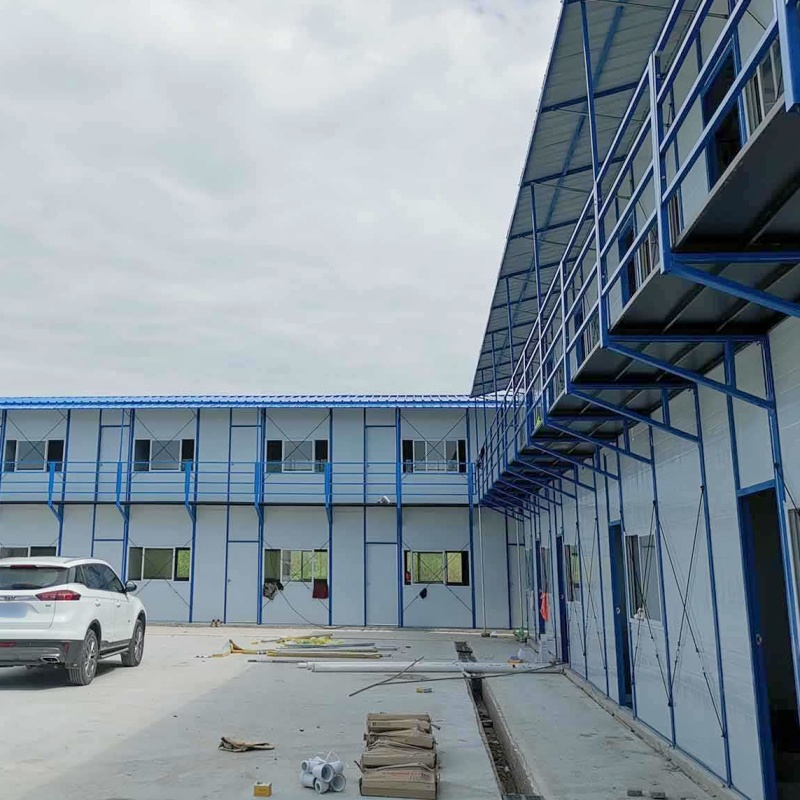

Custom Prefab Modern K Type house is a type of prefabricated building with a modular design for quick installation and easy transportation. The main structure is made of light steel frames, including columns and beams, which provide strength and stability. Wall and roof panels are usually made of sandwich panels, such as EPS, rock wool, or PU, offering good insulation and durability.

  • หมายเลขสินค้า :

    TSH-86
  • โครงสร้างเฟรม :

    Galvanized Light Gauge Steel
  • แผ่นผนัง :

    EPS/Rockwool/PU/ Fiber glass wool sandwich panel
  • พื้น :

    Ceramic tile and wooden ground floor
  • ต้านทานแผ่นดินไหว :

    Up to 7 degree
  • Share to :



Product Specifications
Product Name Low cost prefabricated light steel frame house
Size Customized
Material Galvanized steel structure with sandwich panel wall and doors, windows, etc.
Steel structure 8# C steel &H selection steel
Wall Panel 50mm/75mm/100mm/150mm sandwich panel
Sandwich panel style EPS/ PU/Rock wool sandwich panel
Roof EPS/PU/Rock wool fireproof sandwich panel
Window Plastic steel sliding window or customized
Door Steel frame with sandwich panel/Steel security door/customized
Floor Plywood board /Cerment board
Wind resistance Grade 11
Earthquake resistance Grade 7
Snow load capacity of roofing 0.6kn/m2
Live load capacity of roofing 0.6kn/m2
Wall permitted loading 0.6kn/m2
Wall heat transmission coefficient 0.35kcal/m2hc
Density of rock wool 60kg/m2
Density of PU 40kg/m2
Density of EPS 12kg/m2
Density of IPES 20kg/m2

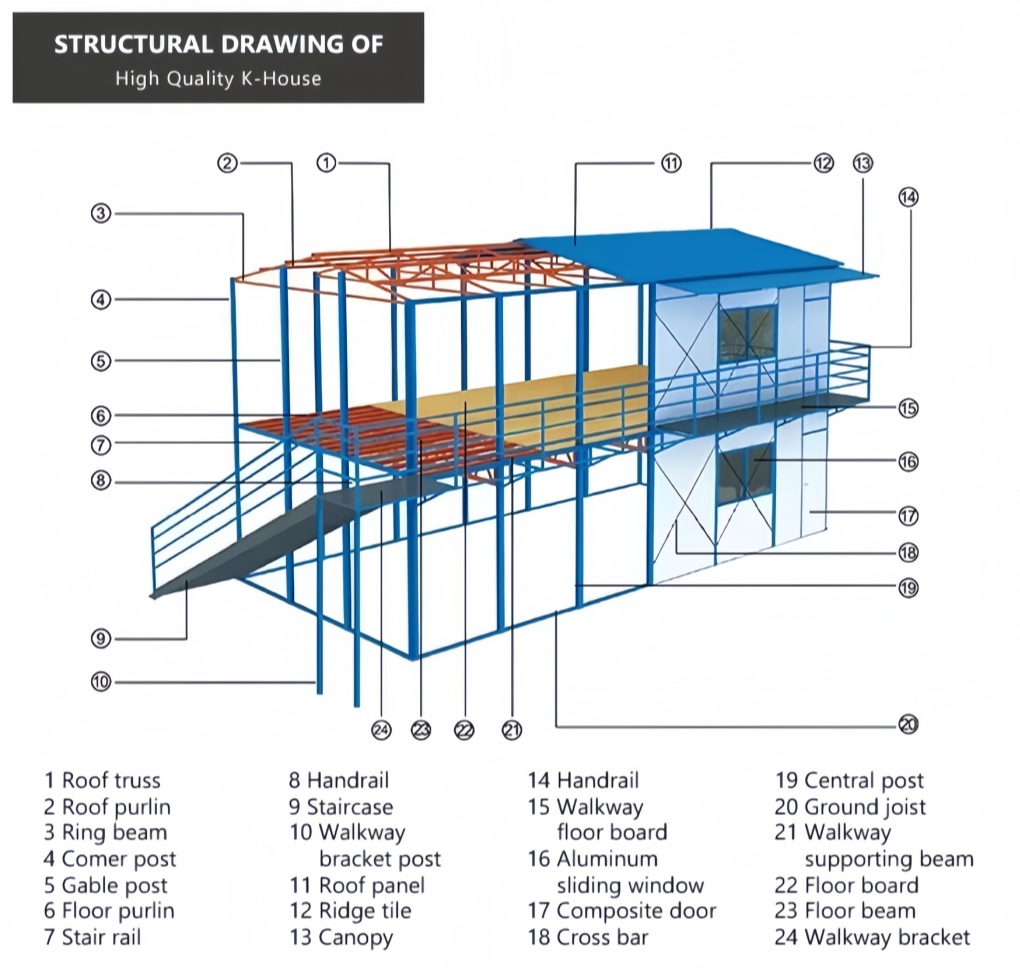

(1) TOPINDUS K Type Prefab House is of thin walled light steel structure, which meets the building structural standard requirements ( waterproof and anti-corrosive)

(2) Due to prefabrecated house designed and manufactured in modules, various designs can be provided to meet customers' satisfaction.

(3) Owing to rational design, the transportation of housed is convenient and cost saving, and houses can be easily assembled and disassembled for severval times without damage, not bring out building debris.

(4) All the steel components are painted and anti-rust which can be normally used for more than 10 years.Columns are bolted to the foundation and other steel components.

(5) Wall panel are color steel sandwich panel made of double sided steel sheets and expanded polystyrene middle layer with special adhensive. This kind of EPS sandwich panel are heat and sound insualted.

(6) Roof panels are also color steel sandwich panel made of corrugated single-layer steel sheet  and polyurethane with special adhensive.this kind of PU sandwich panel also heat and sound insualated. This entire roof is double pitched and roof slope is designed to 1:5, ensuring easy flow water.

(7) Door, windows and interior partitions can be flexibly fixed.staircases are designed outside the house.

(8) Customized prefabricated steel building K house are beautiful and uncluttered in apprearance and very comfortable to live.

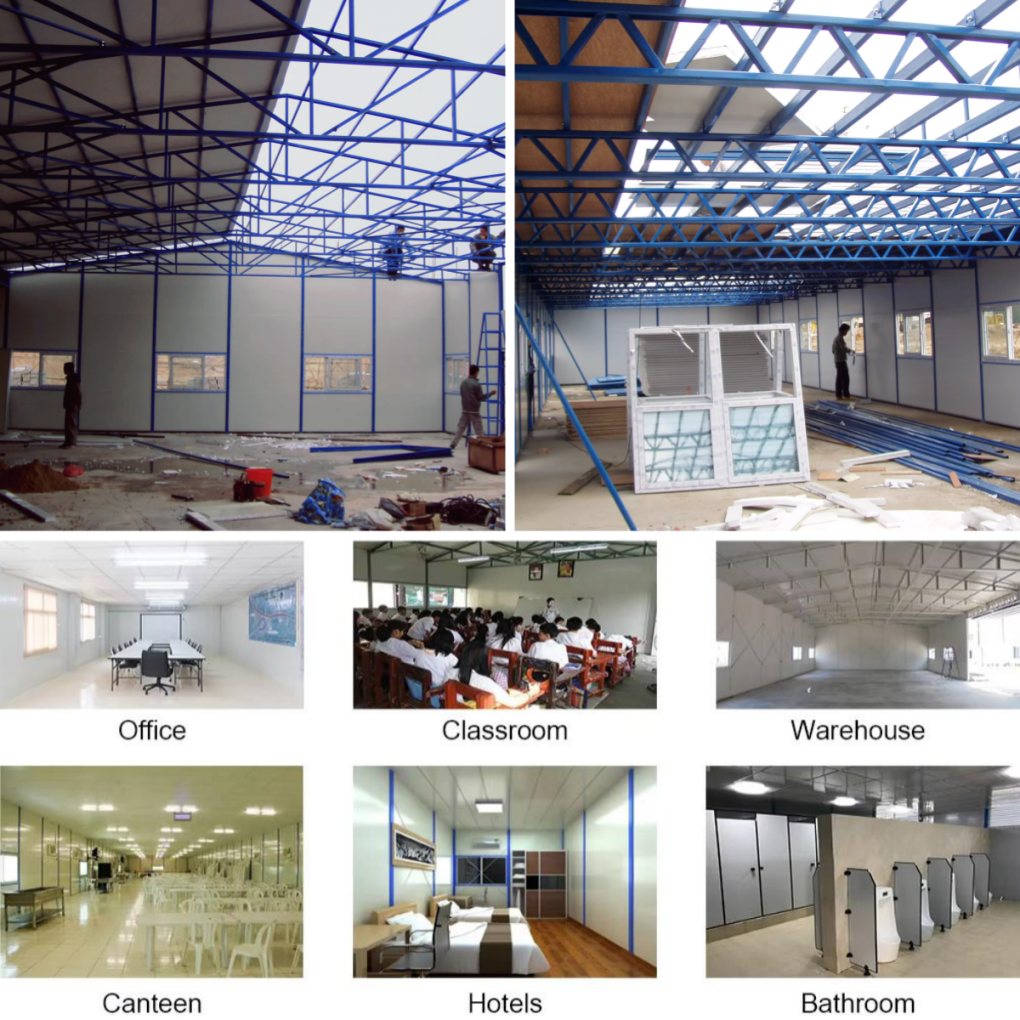

Cheap light steel structure prefabricated house is widely using in the different industry: the temporary house for road, railway and building site,etc. Also can be as temporary office, meeting room, headquarters, public accommodation and temporary store , school, hospital, parking lots, show rooms, electric house, repairing shop, gasstation etc.

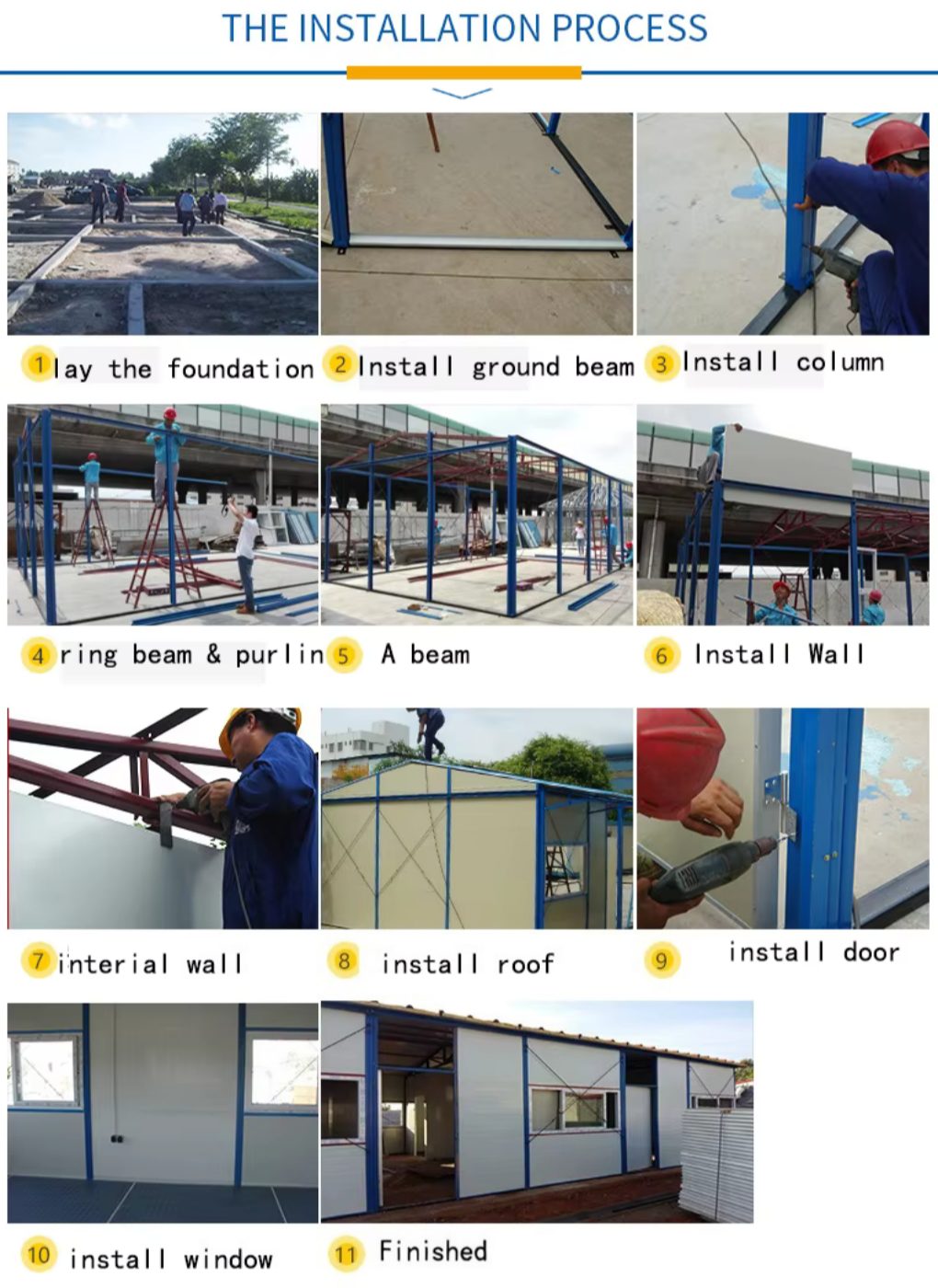

Installation Process:

TOPINDUS Professional Services:

As a professional manufacturer of prefabricated buildings, TOPINDUS is committed to providing reliable products and comprehensive support for every project.

  • Free Design Drawings After Order Confirmation: Once the order is confirmed, our team will provide customized design drawings based on your requirements, including layout plans and technical details.
  • Real Project Case Sharing: We can share actual project photos and case studies to help you better understand the product quality and application possibilities.
  • Installation Instructions and Support: Detailed installation manuals and step-by-step guidance are provided to ensure smooth assembly. Remote or on-site support can also be arranged when needed.
  • Flexible Customization: From structure and size to materials and layout, we offer tailored solutions to meet different project needs.
  • Quality Assurance: With strict quality control and an experienced team, we ensure durable and reliable building systems.



Please kindly inform us of the information below if you are interested in our products.

1. Project Progress: Is Land Purchased? Is it licensed by the government?

2. Usage: for warehouse, workshop, showroom, etc.

3. Design: Please provide the design drawing. Or do you need us to design for you?

4. Location: In which country will it be built?

5. Local Climate: Wind speed, Snow load (max. Wind speed)

6. Dimension: Length*width*height

7. Crane Beam: Do you need crane beam inside the steel structure?

8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.

9. Windows and Doors: what material, quantity, and type?



FAQ:

Q1:Do you provide on-site installation services?

A1: We provide detailed installation instruction drawings and videos for every project. For large-scale projects, we can dispatch installation workers and site supervisors through mutual negotiation. The cost of on-site services is subject to discussion with the client.

Q2:What is the delivery time?

A2:Typically, delivery is completed within 7-10 days after receiving the deposit. For large orders, the delivery time will be negotiated separately.

Q3:How do you control Easily Assembled K House product quality?

A3:(1) Design quality: We identify potential issues in advance and provide high-quality design solutions.

(2) Raw material quality: We strictly select qualified raw materials.

(3) Production quality: We utilize precise manufacturing techniques, experienced workers, and implement rigorous quality inspections.

Q4:How are quality issues handled?

A4: We offer a 1-year warranty. During this period, TOPINDUS will take full responsibility for any quality problems caused by production.

Q5:Do your products have a defined service life? If so, how long is the Customized Two Storey K-Type Prefab Office?

A5:Under standard climate and environmental conditions, the expected service life of a container house steel structure is 10-20 years.
